Hollow Spindle
Lathes
A DIAL BIG
BORE HOLLOW SPINDLE LATHE IS THE MOST VERSATILE LATHE IN THE WORLD
Model 1640-GAFT
Dials Newest 7" (177 mm)
Hollow
Spindle Bore Gap Bed
Small compact size but with a large
7" bore makes this industrial lathe extremely versatile. No need
for a long bed lathe. With this "Hollow Spindle" you have the
best of both worlds; small size but huge capacity. Equipped with
Auto Feed, Threading, Power Coolant System, Splash Shield, Work Light and
Variable Speed.
800-645-8652
|
Dial's Model 2060-DD Super
Lathe
Gap Bed - Dual Drive High Torque - Six Jaw Chuck - 10"
(250 mm) Hollow Spindle Bore
Call for more information.
800-645-8652 |
|
SPECIFICATIONS |
|
Model 2040-AFT |
|
Speed |
0-400 RPM* |
|
Spindle Bore |
10" (250mm) |
|
Chuck Opening |
9.375" (238mm) |
|
Chuck Type |
3 Jaw |
|
Horsepower |
7.5 HP |
|
Power Requirements |
208-230 Volt 3 Phase |
|
Dimensions |
68" H X 43" D X 89" L |
|
Shipping Weight |
4,500 lb. |
|
* Optional High Torque drive
adds 0-200
RPM |
specifications subject to change
Videos
|
Dial's Model 2040-AFT GAP BED Hollow Spindle Bore Lathe
IS The Most
Versatile Tool Room Lathe in America
Powerful, Compact, very Cost Effective!
It
Can also be ordered with a Tapering Attachment. Should you
need a 60" bed or a four jaw chuck, We have those, too. Add the
additional "Dual drive high torque option" and you would have a
superior lathe making it capable of handling most any job that
you may
ever encounter.
This wonderful gap bed lathe comes with an American
manufactured Aloris quick change tool post and the finest of
American tooling.
Rest
assured this lathe is big enough, tough enough, and precise
enough to do any job required of it. Whether you are turning
solid stock or tube stock, it makes
no difference to this lathe. As for the price. . .you will
be pleasantly surprised. Give us a
call at:
800-645-8652.
|
|
|
|
Specifications |
|
Bed Length |
40" (1000 mm) |
|
Swing 20" |
20" (500mm) |
|
Swing Over Cross Slide |
13.6"
(345mm) |
|
Speed |
Variable 0-400 RPM |
|
Low Speed high Torque Drive |
0-200 RPM |
|
Front Chuck Typoe |
3
Jaw
Self Centering |
|
Rear Chuck Type |
3
Jaw Self Centering |
|
Spindle Bore |
10"
(250mm) |
|
Tailstock |
5MT |
|
Taistock Stroke |
5.9" (150mm) 2.95"
(Dia 75mm) |
|
Steady Rest |
2.36"- 10" (60-250mm) |
|
Tool Post |
aloris CXA |
|
Tool Holder |
Aloris CX |
|
Dead Center |
Dial #5 Morse
Taper |
|
Horsepower |
15
hp |
|
Power Requirements |
230V
3 phase |
|
Dimensios |
68" H X 43" D X109" (Approx) |
|
Bed Length |
40" |
|
DIAL'S
MODEL 2-2060
DUAL CHUCK, DUAL DRIVE HOLLOW SPINDLE LATHE |
Don't let
the small foot print of this very powerful, dual chuck, magnum bore,
gap bed, lathe fool you. The power for its size is unmatched. Designed
for the drilling industry you will find this lathe in some of
the most remote "out of the way places" imaginable. For the shop
with limited space, it's a most welcome addition. It's not
available for everyone, we do restrict the distribution, so check with
us.
Options include: Tapering Attachment, Power Coolant
System, Splash Shield, 4-Way Quick Change Tool Post.
|
| |

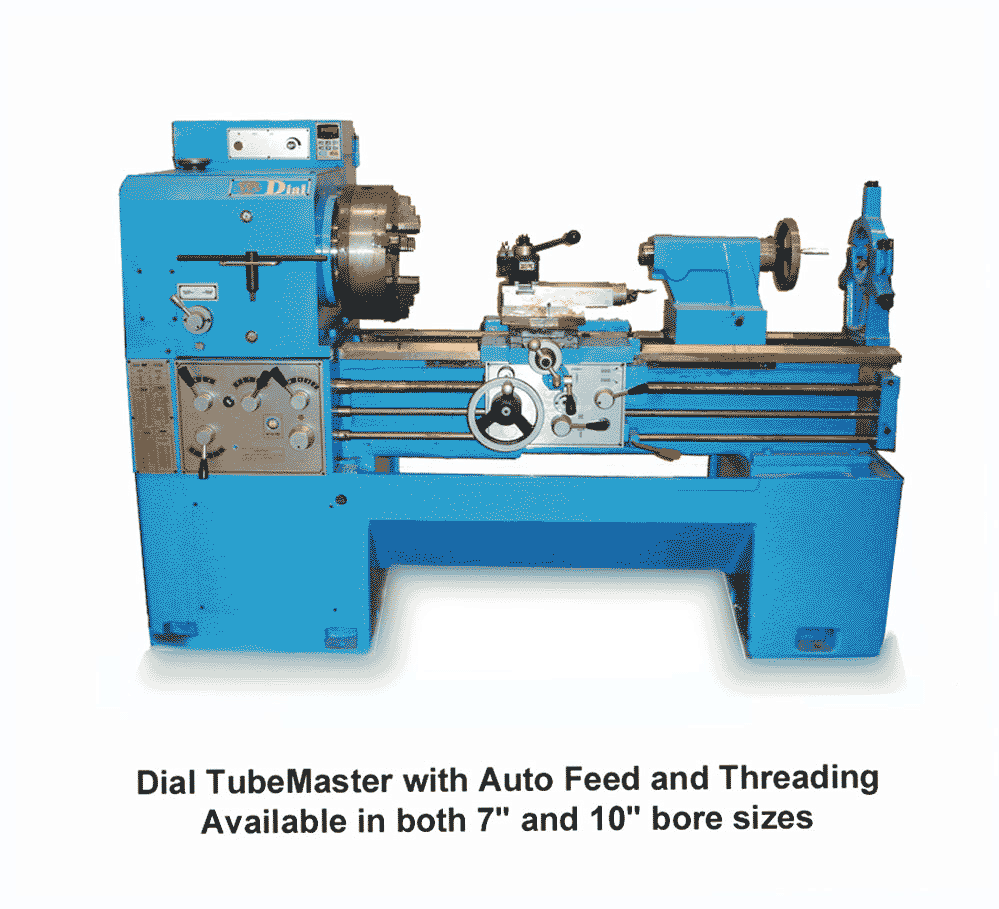

Model 1640-AFT 7"
& 10" Bore Units
SPECFICATIONS |
|
Speed |
0-400 RPM |
|
Spindle Bore |
7" (177mm) |
|
Chuck Type |
3 Jaw |
|
Horsepower |
5 HP |
|
Power Requirements |
208-230 Volt 3 Phase |
|
Dimensions |
57"H X 35"D X 67"L |
|
Shipping Weight |
3,300 lb. |
|
|
|
|
Model 2040-AFT 10" Bore Unit |
|
Speed |
0-400 RPM |
|
Spindle Bore |
10" (250mm) |
|
Chuck Type |
3 Jaw |
|
Horsepower |
7.5 HP |
|
Power Requirements |
208-230 Volt 3 Phase |
|
Dimensions |
57"H X 35"D X 67"L |
|
Shipping Weight |
4,000 lb. |
Dial's FAMOUs Model 1640-AFT.
This Gap Bed Lathe is an industrial work horse that simply
can't be
beat for its versatility. The 7" bore accommodates the machining
of a variety of stock. Its ability to cut threads in both sae
and metric enhances it even more.
DO You need a
unit with a larger bore capacity? Then step up to its big
brother the 2040-AFT. It gives you a bigger motor larger bore
and a larger chuck. Everything else stays the same.
|
|
|
Model 2040 10"
Unit Manual Feed
SPECIFICATIONS |
|
Speed |
0-400 RPM |
|
Spindle Bore |
10" (250mm) |
|
Chuck Type |
3 Jaw |
|
Horsepower |
7.5 HP |
|
Power Requirments |
208-230 Volt 3 Phase |
|
Dimensions |
57"H X 35"D X 67"L |
|
Shipping Weight |
4,000 lb. |
THE
MOST POPULAR

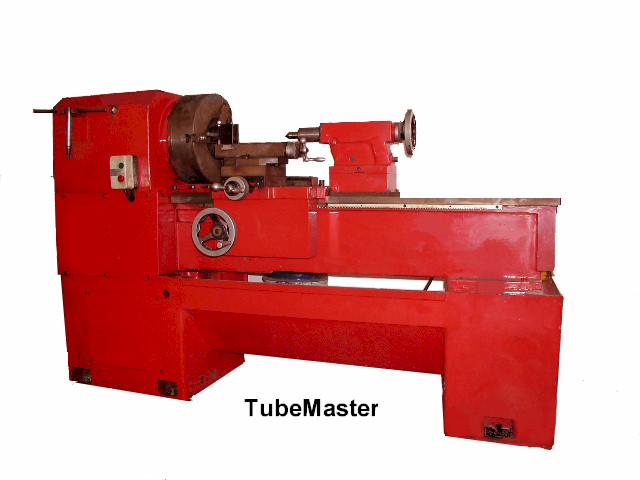

Dial's Model 2040 TubeMaster
A Gap Bed, Manual LathE
|
Pound for pound, one of
the most cost effective turning centers we've ever
manufactured. It currently reigns as our number one best
seller. The reasons are obvious, its big bore, GAP BED, one piece
base, precison engineered,
and
ITS price.
One more thing, it thrives on abuse. iT'S A GREAT INVESTMENT
BECAUSE Machines we made back
in the 90's are selling for more money
used than they
did when new. Take a look at the video.
|
|
|
|
Model 2012-G Cut-Off ShaftCutter |
|
SPECIFICATIONS
|
|
Speed
|
100 RPM
|
|
Spindle Bore
|
10" (250mm)
|
|
Chuck Opening
|
9.375" (238mm)
|
|
Chuck Type
|
3 Jaw
|
|
Horsepower
|
7.5 HP
|
|
Power Requirements
|
208-230 Volt 3 Phase
|
|
Dimensions
|
57" H X 35" D X 67" L
|
|
Shipping Weight
|
3360
lb
|

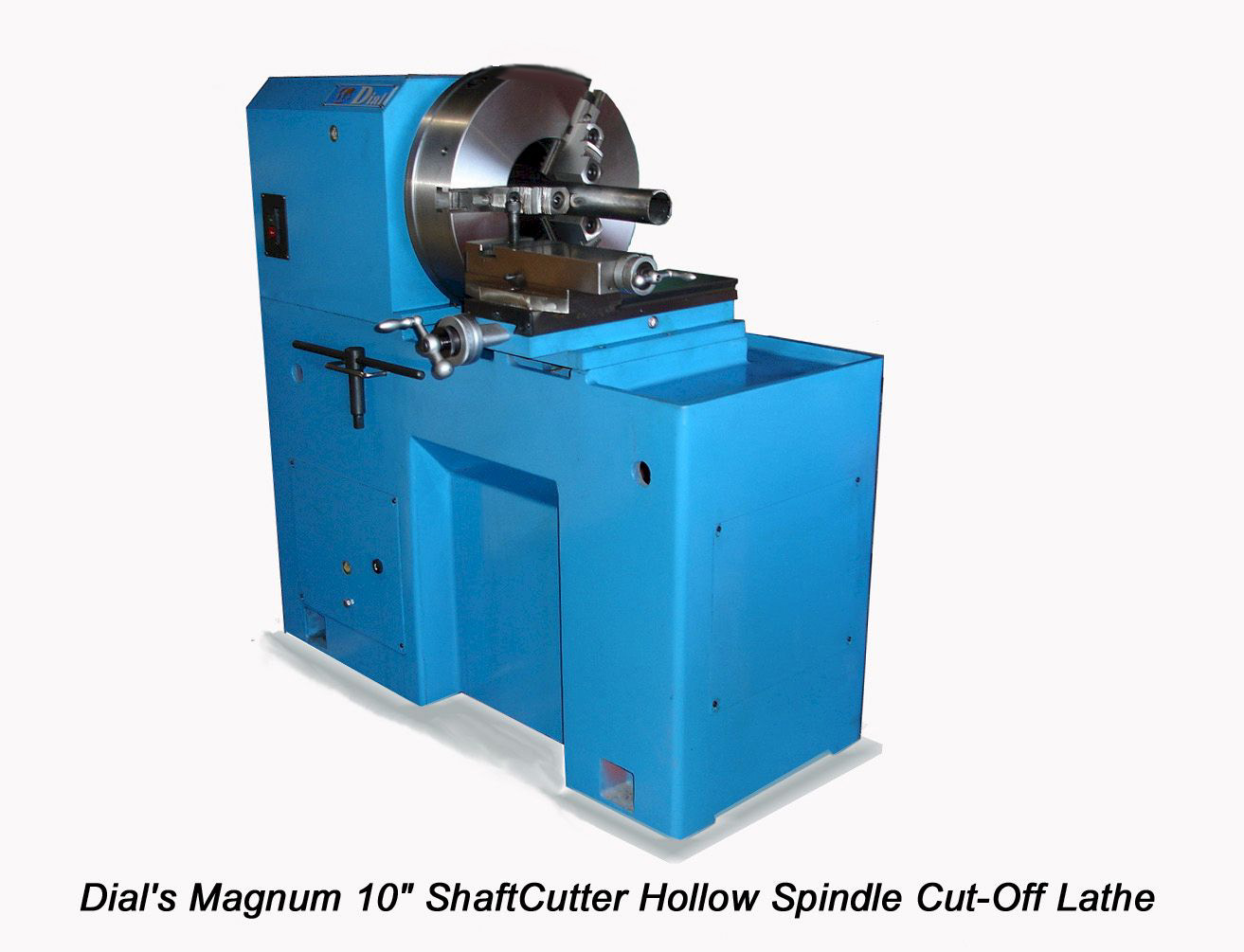

Dial's Shaftcutter single speed magnum 10" bore Model 2012-G
THIS powerful lathe, will
cut tubing and other round stock as well as making short work in
cutting out welds, or squaring up and chamfering tube ends for
welding. Need to turn down solid STOCK for
fabrication? With its 12" machining capability, this lathe will
do the task. the big bore and its limited machining
capability make it extremely versatile. USED UNITS ARE
very rare and SELL FOR MORE money than THEY did when
they were new. this lathe is also available by special order in a 7" bore
configuration.
TAKE A LOOK AT THE VIDEO.
|
 |
